Analysis of Causes and Solutions for Common Fabric Problems --Causes and Solutions of Fabric Vat-to-Vat Color Difference

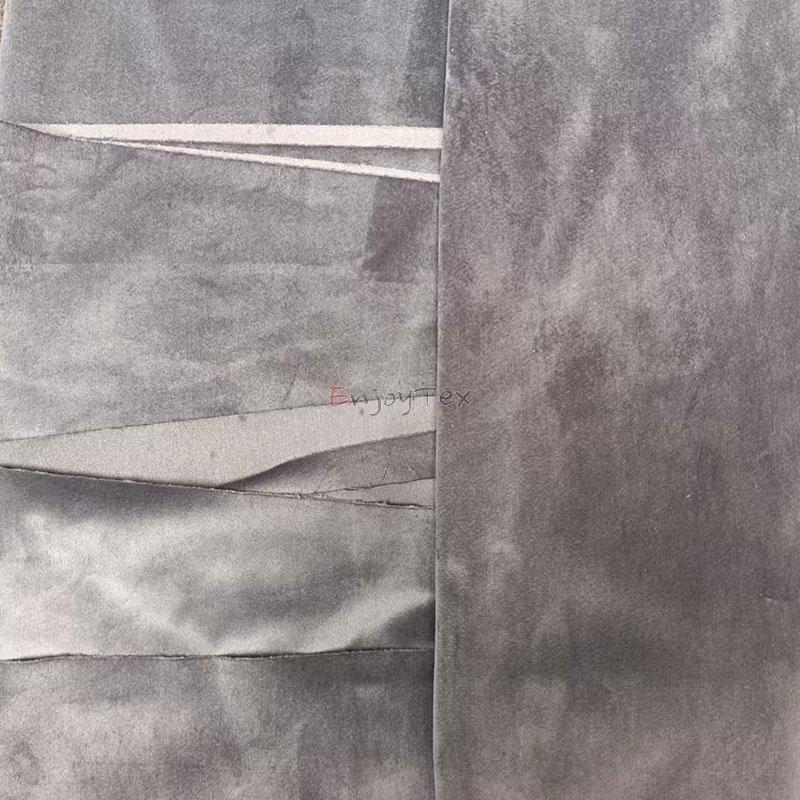

------Definition of Vat Color Difference Vat color difference means obvious differences in shade, hue, brightness and saturation between fabrics dyed in different dye vats under the same order, same color standard and same production requirement. It is also called batch color difference, which easily causes inconsistent color of finished garments.

------Main Causes of Vat Color Difference

 Raw Material & Grey Fabric Reasons

1. Grey fabrics used in different vats come from different yarn batches, weaving machines or production dates, with inconsistent whiteness, density and dye absorption performance. 2. Different moisture content and storage status of grey fabric lead to uneven base color before dyeing. 3. Inconsistent pre-treatment effect (desizing, scouring, bleaching, mercerization) among batches.

Dyeing Formula & Auxiliary Agent Reasons

1. Dye raw materials are from different batches, with different color strength and purity. 2. Manual batching error, inaccurate weighing of dyes, auxiliaries and acid-base regulators in different vats. 3. Improper matching of mixed dyes; different dye uptake speed causes hue deviation between vats. 4. Different dosage of leveling agent, retarding agent and dispersing agent in each vat.

 Dyeing Equipment & Process Parameter Deviation

1. Different types or old & new degrees of dyeing machines, leading to different circulating power and fabric running state. 2. Obvious temperature difference inside different dye vats, inconsistent heating rate and constant temperature holding time. 3. Un unified liquor ratio and fabric loading capacity of each vat. 4. Different running speed, tension and cloth lifting frequency during dyeing. 5. Different water quality, water temperature and water volume used in each vat.

Operation & Production Management Factors

1. Different operators have different operation habits and process control standards. 2. Failure to clean dye vats thoroughly before production; residual old dye liquor causes color interference. 3. Different feeding sequence and feeding speed of dyes and chemicals. 4. Unreasonable production scheduling; the same color is divided into too many vats for separate production. 5. Different cooling and draining speed after dyeing.

Post-finishing Process Differences

1. Inconsistent setting temperature, vehicle speed, overfeed and tension among vat batches. 2. Different times and temperatures of soaping, color fixing and washing. 3. Uneven usage amount of softener, brightener and anti-yellowing agent. 4. Different drying degree leads to visual color shade difference.

Color Checking & Environmental Factors

1. Inconsistent color checking light source and environment between teams and shifts. 2. Different placement time of semi-finished products, resulting in oxidation discoloration difference. 3. Different humidity and temperature in workshop affect final color presentation.

------Solutions to Solve Vat Color Difference

 Unify Raw Material Standard

1. Centralize the use of grey fabric from the same batch, same loom and same pre-treatment batch. 2. Use dyes and auxiliaries of the same manufacturer, same batch number uniformly; stop using different batches of dyes mixedly. 3. Test dye strength in advance to ensure consistent color power.

Standardize Dyeing Formula and Batching Management

1. Fix the unified bulk dyeing formula strictly according to the confirmed bulk sample, and prohibit arbitrary adjustment. 2. Implement automatic precise batching, reduce manual weighing error. 3. Select high-compatibility and synchronous dyeing dyes for color matching.

Unify All Dyeing Process Parameters

1. Assign fixed machines to produce the same color as far as possible; avoid mixing old and new equipment. 2. Unify liquor ratio, loading weight, temperature curve, holding time and running speed of all vats. 3. Standardize water quality, pH value and auxiliary agent dosage in production. 4. Uniformly regulate feeding method, feeding time and post-dyeing cooling process.

Strengthen On-site Operation Management

1. Unify operation specifications and carry out pre-job training for workers. 2. Strictly implement vat cleaning procedure; thoroughly remove residual color before changing color and batch. 3. Control the number of split vats reasonably; merge production to reduce vat dispersion for large orders.

Unify Post-finishing Technology

1. All vat fabrics adopt the same setting, color fixing, soaping and softening process parameters. 2. Control the final fabric moisture consistently to eliminate dry-wet color difference.

Strict Intermediate Inspection & Color Confirmation

1. Make the first vat sample confirmed by customer first, then follow up all subsequent vats with this standard. 2. Compare color between vat samples in real time during production, adjust formula timely if deviation occurs. 3. Use unified standard light box (D65) for color checking, reject natural light visual inspection.

Finished Product Classification & Delivery Control

1. All finished fabrics are sorted strictly by vat number and color shade grade. 2. Separate storage and separate delivery for fabrics with slight vat difference. 3. Inform garment manufacturers to cut fabrics by single vat to avoid mixed vat cutting.

------Remedial Treatment after Occurrence of Vat Color Difference

1. Slight shade deviation: adjust auxiliary agent or adopt unified secondary color fixing and softening to balance color light. 2. Obvious depth difference: conduct low-temperature light supplement or fading correction respectively. 3. Serious out-of-tolerance: classify and separate goods, deliver separately or downgrade for use. 4. Summarize process data of deviated vats, revise standard process to prevent recurrence.
